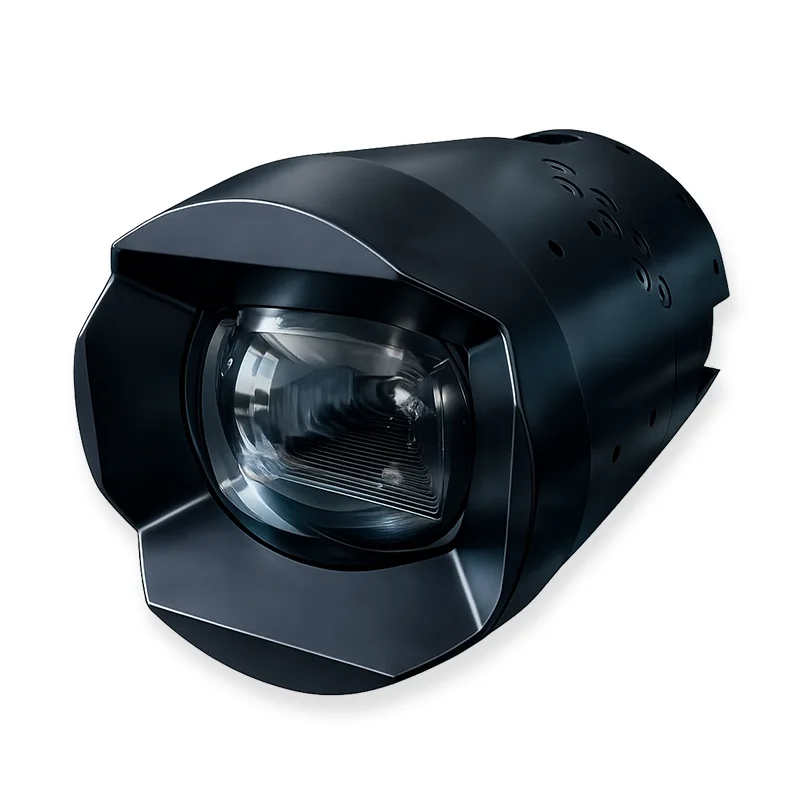

Rayfin Trench 11Km
✓ In stock
SubC’s deepest-rated camera, engineered for extreme pressure environments. Built on the proven Rayfin platform, it delivers high-resolution imaging and reliable data capture. Programmable camera scripts support autonomous operation, with optional hibernate functionality for extended timelapse deployments. Designed for battery-powered landers, AUVs, and winch-deployed systems or integrated with specialized ROVs capable of hadal operations.
Pair with an Aquorea Trench LED rated to 11Km to provide reliable, high-intensity illumination for deep-sea deployments.
Key features:
-
4K/HD video and high-res stills with 10x digital zoom (equivalent to 5x optical zoom)
Wide field of view for sharp, distortion-free images
Simultaneous digitals stills and video capture
-
Built-in no-code script builder for automating capture, lighting, and sensor triggers
Ideal for time-lapse, long-term monitoring, and event-based workflows
Configurable no-code mission scripts, with optional SubC support
-
Internal recording for autonomous and disconnected deployments
Store hours of 4K video and thousands of high-resolution stills
-
Log tilt, roll, and other metadata alongside your footage
Automatically embeds EXIF and NMEA data from altitude, and external sensors
Aux ports support integration with external lights, lasers, and sensors
Real-time data annotation into video overlays and audio narration for clear, in-context documentation
For technical manuals, wiring diagrams and 3D files contact team@subcimaging.com
Time Lapse & Automation
Built-in no-code script builder for automating capture, lighting, and sensor triggers. Ideal for time-lapse, long-term monitoring, and event-based workflows.
Reliable HD & 4K Imaging
Capture high-resolution 4K video and stills simultaneously through a wide, distortion-free lens. Features 10x digital zoom—equivalent to 5x optical—for crisp imagery across all mission-critical environments.
Built-In Data Logging & DVR+
Log tilt, roll, and other metadata alongside your footage. Automatically embeds EXIF and NMEA data from GPS, altitude, and external sensors. Includes DVR+ single channel license with optional multichannel upgrade.

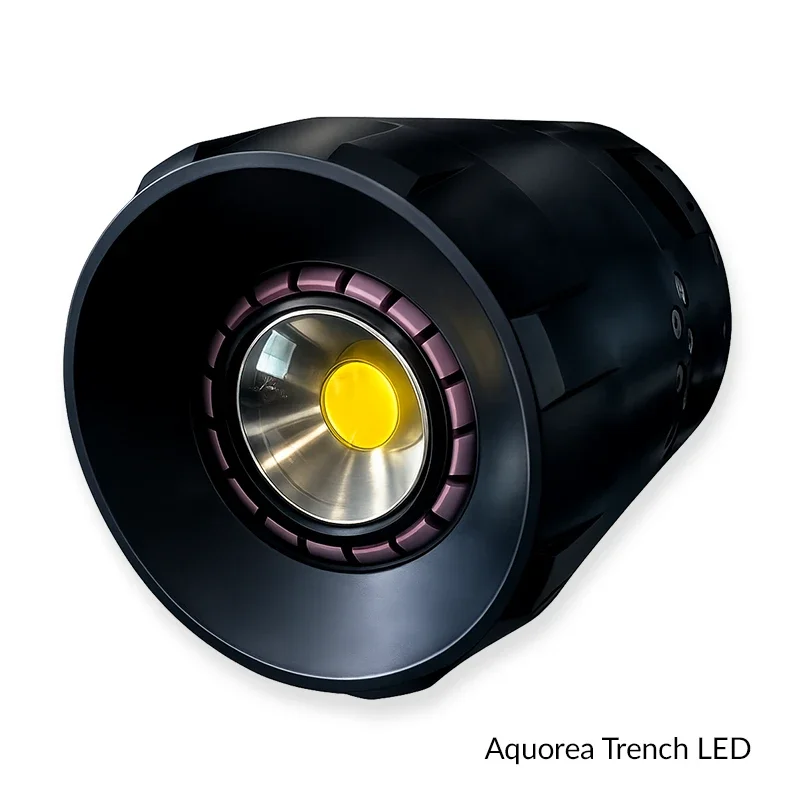

The Aquorea Trench LED
Purpose-built for zero-light hadal environments, the Trench LED provides reliable, high-intensity illumination for missions up to 11,000m. Engineered to thrive where conventional lighting fails, it integrates seamlessly with the Rayfin Trench for superior deep-ocean imaging.

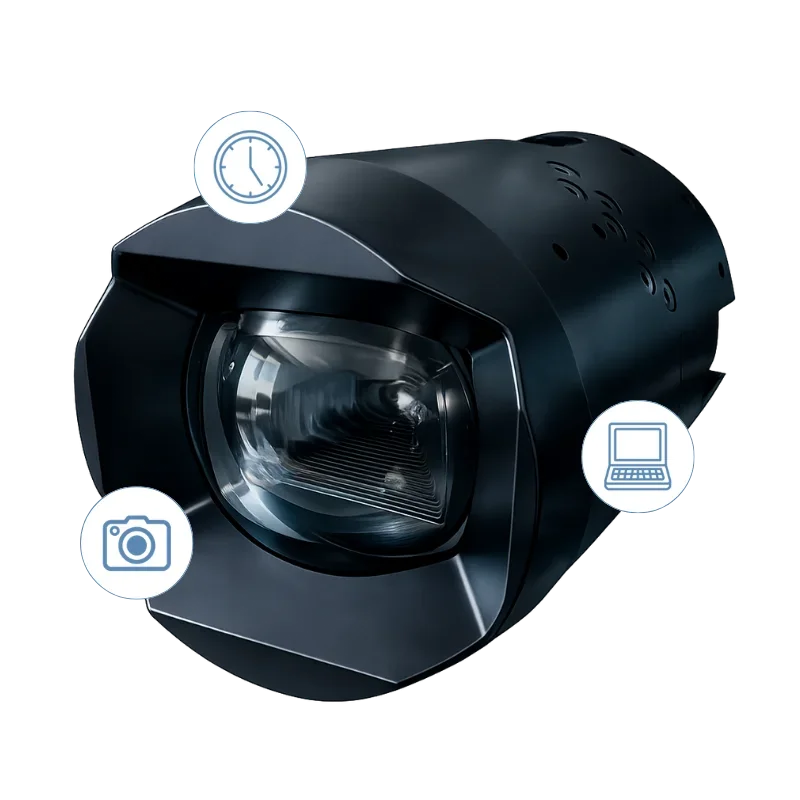

Built to Do More
The Rayfin isn’t just a camera. It comes fully equipped with advanced software and built-in tools to capture high-quality imagery and log critical data.
No upgrades needed. No add-ons required. Just everything you need, ready to go.
